AT329 wall-mounted stand-alone alcohol tester featured with outstanding testing accuracy, easy operation and large storage. With whole new design and technology, AT329 alcohol tester supports card payment (Nayax) and coins payment. It’s large color touchable screen supports displaying ads and promotion pictures, neat operation interface will help people finish the alcohol testing easily.

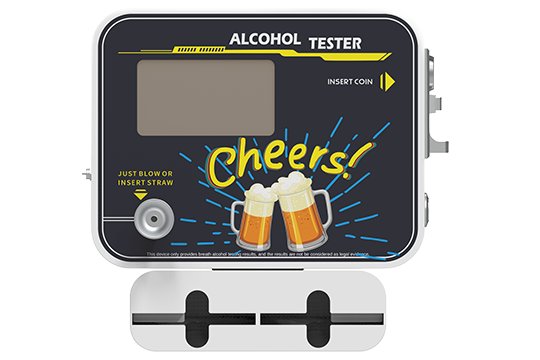

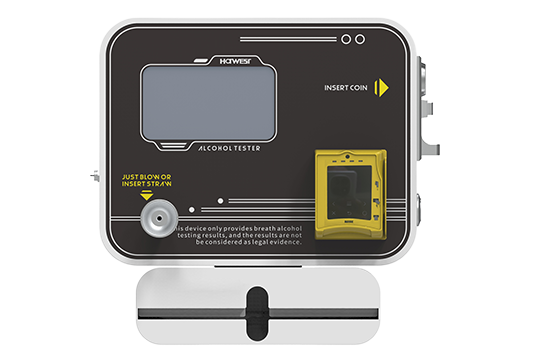

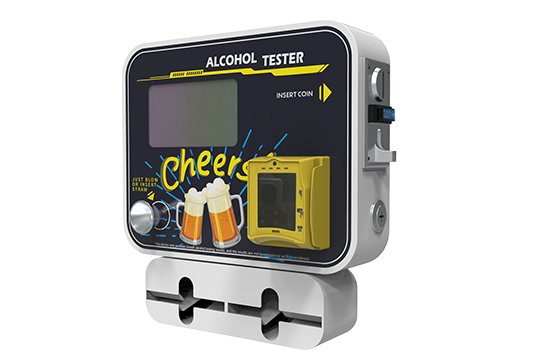

AT329 Standalone Alcohol Tester
Description
Features
Multi-functional payment methods, card & coin is optional
Fuel cell sensor module, easy to change, calibration free.
Colorful display supports the ads pictures rolling playback
Non-contact blowing or mouthpiece for cleanliness and hygiene
Payment amount could be queried
Unit &K value& alarm level is adjustable
Application
Bar, hotel, restaurant, factory, workshop, office, hotel, mine, etc.
Specifications
| Model | AT329 |
| Sensor | Fuel cell module |
| Detection Range |
0.00 - 0.5%BAC, 0.00-5.00‰BAC 0.00 – 2.5mg/L; 0.00 – 5.00g/L; 0-550mg/100ml |
| Resolution | 0.001%BAC |
| Display | 7.0-inch TFT touch screen |
| Power | AC100V～AC240V，50/60HZ |
| Working Environment | 0℃ - 40℃, ≤90% RH, No dews |
| Storage Environment | -10℃～70℃ |
| Accuracy |
C＜0.400 ±0.032 mg/L 0.400≤C＜1.000 ±8% C≥1.000 ±30% |
| Card Reader | NAYAX-VPOS EU/US |
| Mouthpiece Size | Φ:7mm |
| Reserved Port | RS485/Relay |
| Dimensions | 370mm×86mm×380mm |
| Net Weight |
5KG Coins type 5.5KG Card & Coin type |
| Different payment modes are configured by hardware options. | |
