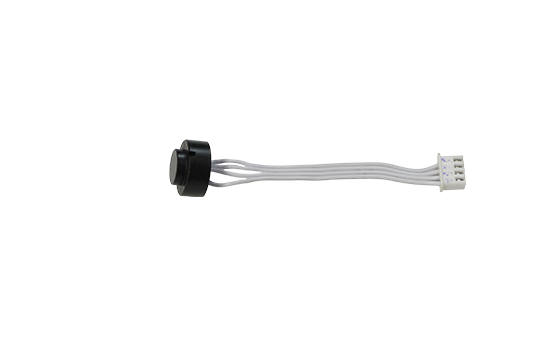

Ultrasonic Sensor SMS812

Cost-effective

Easy to implement

Insensitive to lighting conditions

Can detect transparent or colored objects

Description

Non-contact ultrasound distance detection uses the TOF principle to calculate the distance to the object being measured. It is not affected by light, magnetic fields, and electromagnetic interference, and is also suitable for highly corrosive liquids such as acidic liquids. It has a short response time and can achieve real-time measurement without lag. Specific application areas include robotic arms, drones, sweeping robots, liquid level detection, etc.

The dialogue mode based on touch screen and buttons is gradually unable to meet the needs of the majority of customers. Ultrasonic gesture recognition can control the device screen through wireless sensing to better improve the customer experience. It is specifically used in smart phones, watches, smart home appliances, household robots, wearable devices, children’s teaching aids and other fields to promote the human-machine dialogue mode to be more intelligent and natural.

Features

Cost-effective

Easy to implement

Insensitive to lighting conditions

Can detect transparent or colored objects

Application

Distance Measurement: Liquid Level Detection, 3D Printer, Engine, Toys

Proximity Switch: TWS Earbuds, Mobile Phone, Keyboard, Elevator

Flow Measurement: Gas Meter, Gas Concentration, Liquid Flow Rate

Material Identification: Sweeping Machine, Film Thickness Measurement, Toys

Specifications

Model Measuring range/cm Ultrasonic frequency Measurement frequency Appearance dimensions
SMS812 2-6 700-900KHZ 100Hz 15.2X12X10.3mm

Non-contact ultrasonic distance detection uses the TOF principle to accurately calculate the distance of the measured object. It is not affected by light intensity and electromagnetic interference, and is not afraid of highly corrosive liquids such as acids and alkalis. With a short response time, it can easily achieve real-time measurement without lag. Specific applications include 3D printers, methane gas detectors, etc.
