The R10 Uncooled Portable Infrared Gas Leak Detector utilizes advanced technologies such as infrared thermal imaging, TDLAS, and laser ranging. It integrates the technical advantages of infrared thermal imaging and TDLAS, enabling timely response to leaked gases such as methane through long-distance non-contact detection methods. It accurately traces the source of the leak while displaying the concentration of the leaked gas and issuing alarm information. This product is portable, user-friendly, and suitable for various inspection scenarios, effectively enhancing detection efficiency.

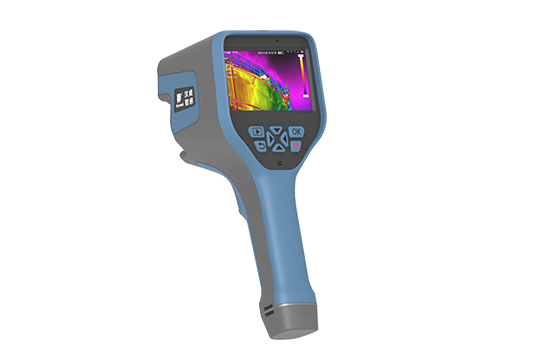

R10 Uncooled Portable Infrared Gas Leak Detector
Description
Features
Infrared detection
High resolution real-time detection
High sensitivity gas cloud enhanced imaging Intelligent determination and area detection of gas leakage
Efficient data transmission
Multiple data interface modes, including USB 3.0 and HDMI;
Multiple communication methods, including WIFI, Bluetooth, etc., support real-time data upload.
Explosion-proof certificate
Exic lIC T4 explosion-proof certification supports safe use of products in petroleum, petrochemical, natural gas, and oil and gas field stations.
Application
Oil and petrochemical inspection
Natural gas inspection
Environmental law enforcement
Ammonia leakage inspection
Refrigerant leakage detection
Specifications
| Thermal imaging | Detector type | Uncooled vanadium oxide |
| Resolution | 640x512 | |
| Infrared response band | 7.0-8.5μm | |
| Thermal sensitivity | 25mk | |
| Detector frame rate | 25Hz | |
| Focal length | 18mm | |
| Field of view angle | 29.8°×22.6° | |
| Detector pixel size | 12um | |
| Focusing mode | Manual focusing | |
| Remote laser detector | Detection object | Methane |
| Detection principle | Laser absorption spectroscopy | |
| Static detection limit | 5ppm.m | |
| Response time | 0.5s | |
| Detection range | 0-50,000ppm.m | |
| Working temp | -20-45℃ | |
| Humidity | <90%RH, No condensation | |
| Temp measurement | Temp. range | -20°C-150°C |
| Accuracy | ±2% or +2℃ | |
| Resolution | 0.1°C | |
| Detection method | Center point/hotspot tracking and temperature display | |
| Area setting | Point, line, and area selection: Temp. measurement grading | |
| Image display | Visible light camera | 5 million pixels |
| Display screen | 4.3" LCD touch screen | |
| Display resolution | 800x480 pixels | |
| Image mode | Infrared, visible light, picture in picture, detail enhancement | |
| Color palette | 10 types | |
| Storage and transmission | Storage medium | MicroSD card supports up to 128GB |
| Image format | JPEG | |
| Video format | MP4 | |
| External interface | USB3.0、HDMI、 | |
| WIFI | support | |
| Bluetooth | Bluetooth 5.0 | |
| Power system | Battery type | Rechargeable Lithium battery |
| Working time | Not less than 3 hours | |
| Charging method | TYPE-C direct charging, base charging | |
| Charging time | 2.5 hours to fully charge 90% Storage | |
| Environmental factors | Working temp. | -10～+50°C(TDLAS not working) |
| Storage temp. | -20 ~ +60°C | |
| Relative humidity | 10% to 95%, no condensation | |
| Ex grade | IIC T4 level | |
| Ingress protection | Ip54 | |
| Features | Laser focal length | Range:<=20m Accuracy:0.2m |
| Audio | Support voice annotation and playback | |
| Positioning module | Beidou | |
| Physical parameters | Weight | About 1kg |
| Dimension | 287x125x120mm | |
| Installation | Universal UNC%-20 nut interface, with supporting tripod bracket |
