The independent photoelectric smoke fire detection alarm YB030 detects the fire through the principle of dual optical path scattering. Scattered light’s intensity can identify whether there is smoke or not. When the smoke reaches a certain concentration, that is, the light intensity received by detector reaches a presetting level, the detector will give an audible and visual alarm.

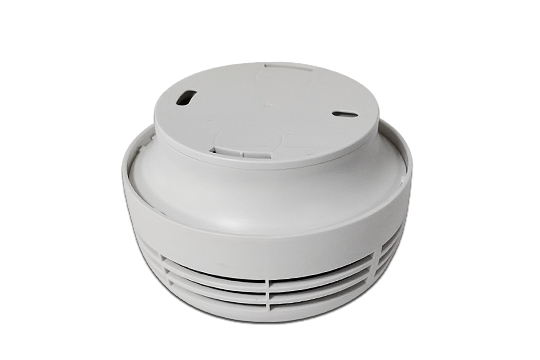

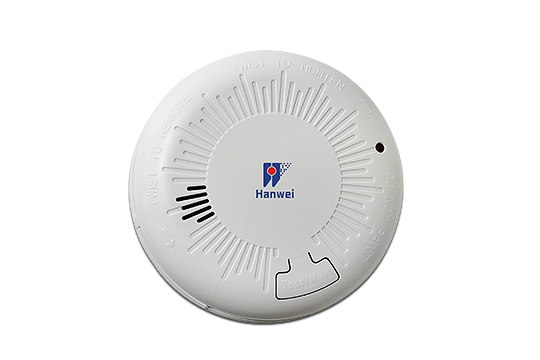

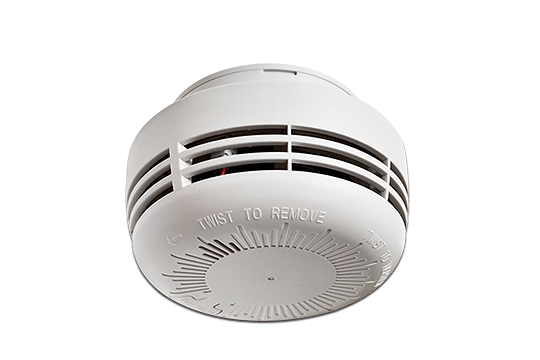

YB030 Smoke Detector
Description
Features
Dual optical path design to avoid false alarm
New design
EN14604 pending
Application
The product can effectively detect the visible smoke generated by the smoldering of the fire at the early stage, so that users can notice the danger in time or organize personnel evacuation. It is suitable for various places such as home, school, store, factory, hotel and so on.
Specifications
| Product model | YB030 |
| Working voltage | DC 9V (alkaline battery; 6LR61; 500mah) |
| Alarm mode | Audible&visual alarm |
| Alarm sound | ≥85dB@3m |
| Battery life | ≥ 5 year |
| Working temperature | -10℃~＋55℃ |
| Relative humidity | ≤95%RH |
| Alarm classification | Fire alarm, fault alarm and low power alarm |
| Executive standard | EN 14604：2005 |
| Product size | Φ90mm×H56mm |
