VOC 205 handheld VOC gas detector adopts PID sensor module with wide range, high resolution, built-in temperature compensation and long service life to ensure the accuracy and stability of gas concentration detection.

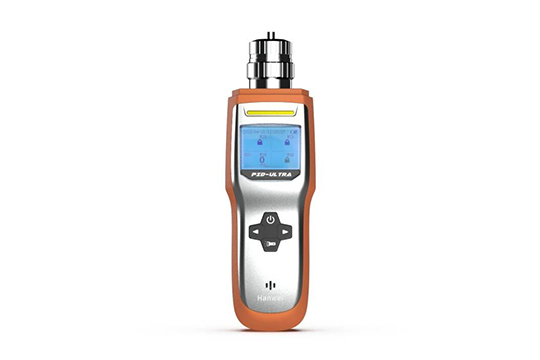

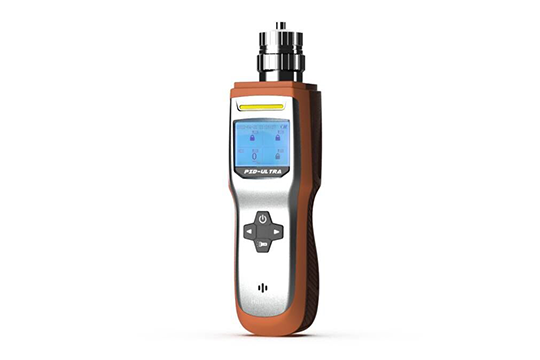

VC205 Handheld VOC Gas Detector
Description
Features
Advanced PID detection technology
Long-lifespan UV lamp which can work for more than 10000 hours
Built-in temperature and humidity sensors for automatic compensation
Rich gas library
Including over 700 VOC gases, meeting the needs of multiple scenarios
Large capacity data storage
More than 1.3 million memory, 60-second storage interval, at least 2-year storage
Long battery lifespan
Can work for 16 hours after full charging
Easy-to-use PC analysis software
PC software can read instrument data and display it graphically
Wireless transmission
Support Cat1, 4G, Blue-tooth etc.
Multiple alarms
Audible, visual, and vibrative alarming signals
With fall-down alarm function
Satellite positioning
Can be extended with dual module of GPS+Beidou
Application
This product is suitable for a variety of scenarios, such as petrochemical refining, synthetic fiber manufacturing, gas leakage collection and environmental protection information detection.
Specifications
| Sampling method | Pump suction |
| Sensor type | 10.6eV ultraviolet PID sensor |
| Response time | T90＜3s |
| Measurement deviation | ＜±3% |
| Measurement range | 0.01ppm~5000ppm |
| Sensor lifespan | More than 10000 hours |
| Alarming method | Audible, visual, and vibrative |
| Ambient temperature | -20℃～50℃ |
| Humidity | ＜95%RH (no condensation) |
| Power supply | DC3.7V, 6000mAh Lithium battery |
| Charging time | ＜6h |
| Working time | ＞16h continuously (no alarming) |
| Ex grade | Ex ib IIC T4 Gb |
| Ingress protection | IP66 |
| Dimension & weight | 257.5*77.7*62.2mm, about 890g |
