Cooled type Infrared Focal Plane Sensor Module

Cooled Infrared Modules are advanced devices that combine infrared detectors with cooling systems to enhance image clarity and sensitivity. They are designed to reduce noise and improve resolution, making them ideal for thermal imaging applications.

Long MTTF (Mean Time to Failure):
Up to 20,000 hours

Easy for integration:
Shape: Square, regular shape
Small size and light weight
Many threaded holes on the surface to facilitate lens integration

T2SL IDDCA material:
Stable images, no degradation or drift in image quality after long-term work

Short Cooling Time

Passive and Instant Detection
No-contact, enhancing safety

Convenient for Review

Leakage and Aging Diagnosis in Petrochemical Industry

Explosion Prevention and Monitoring in Petroleum Industry

Safety Detection in Power Systems

CO2 Tracing Gas Detection

Forest Fire Prevention

Maritime Search and Rescue

Maritime Search and Rescue

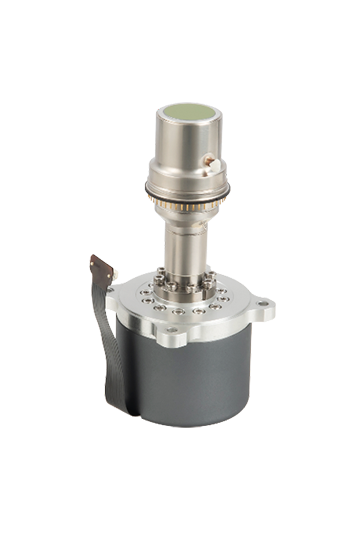

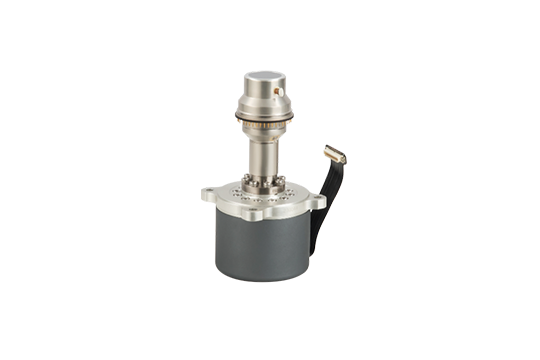

MWIR Module

Image	Index	Value
	Sensitive Material	T2SL IDDCA
	Resolution	640 × 512
	Pixel Pitch	15 μm
	Response Wavelength	3.7 μm ~ 4.8 μm
	F-number	F4 / F2 / F1.5 (Customized)
	Effective Pixel Rate	≥99.7%
	Cooling Time (@ 23 °C)	≤4 min 15 s
	Cooling Method	Linear Stirling Cooler
	NETD	≤18 mk
	Operating Mode	ITR / IWR
	Input Voltage	DC12 V
	Peak Power Consumption	≤22 W
	Stabilized Power Consumption	≤7 W
	Operating Temperature	-40 °C ~ +60 °C

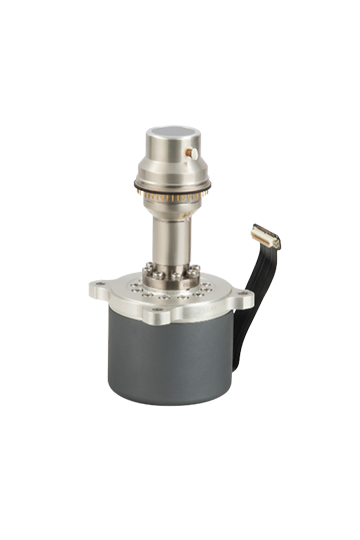

LWIR Module

Image	Index	Value
	Sensitive Material	T2SL IDDCA
	Resolution	640 × 512
	Pixel Pitch	15 μm
	Response Wavelength	7.7 μm ~ 9.3 μm
	F-number	F2
	Effective Pixel Rate	≥99%
	Cooling Time (@ 23 °C)	≤6 min 30 s
	Cooling Method	Linear Stirling Cooler
	NETD	≤35 mk
	Operating Mode	ITR / IWR
	Input Voltage	DC12 V
	Peak Power Consumption	≤20 W
	Stabilized Power Consumption	≤7 W
	Operating Temperature	-40 °C ~ +60 °C

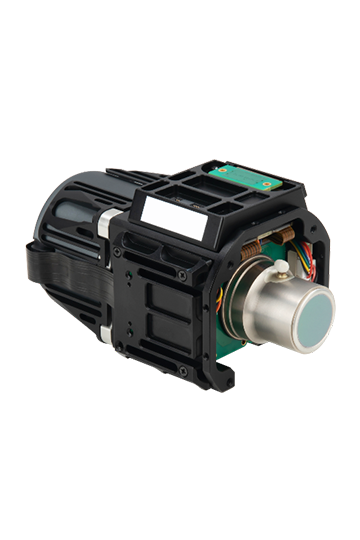

MWIR Core

Image	Index	Value
	Detector Type	T2SL IDDCA MW / LW Cooled Core
	Resolution	640 × 512
	Pixel Size	15 μm x 15 μm
	Response Wavelength	3.7 μm ~ 4.8 μm
	Effective Pixel Rate	≥99.5%
	Full Temperature Cooling Time	<6 mins
	Cooling Method	Linear Stirling Cooler
	F-number	4
	Lifespan (MTTF)	20,000 hours
	Frame Rate	25 Hz/50 Hz/100 Hz/External Sync
	Analog Output	PAL/NTSC Standard
	Digital Output	CameraLink (14-bit Raw Data or 8-bit Video Data)
	Image Adjustment Features	Contrast, Brightness, Image Inversion, Sharpness, Gain, Backlight Compensation, Detail Enhancement, Electronic Zoom, Display/Hide
	Shutter Time	Continuously adjustable (6 ~ 20 ms)
	Power Supply	DC 24±4 V
	Power Consumption	Cooling 36W / Stable 24 W
	Operating Temperature	-40 °C ~ +60 °C
	Storage Temperature	-50 °C ~ +70 °C
	Dimensions	≤151.5 mm × 99.3 mm × 48.5 mm (Excluding Lens)
	Weight	698g (Horizontal Core); 708g (Vertical Core)

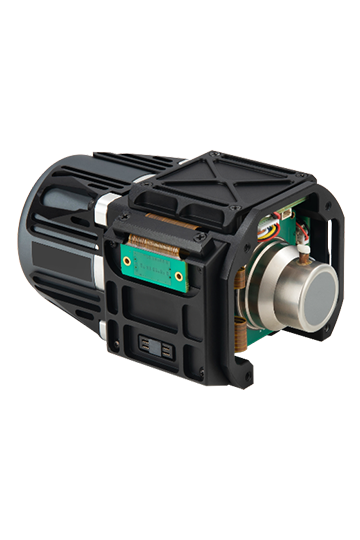

LWIR Core

Image	Index	Value
	Cooling Method	Integral Stirling Cooler
	F-number	2
	Lifespan (MTTF)	8000 hours
	Frame Rate	25 Hz/50 Hz/100 Hz/External Sync
	Analog Output	PAL/NTSC Standard
	Digital Output	CameraLink (14-bit Raw Data or 8-bit Video Data)
	Image Adjustment Features	Contrast, Brightness, Image Inversion, Sharpness, Gain, Backlight Compensation, Detail Enhancement, Electronic Zoom, Display/Hide
	Shutter Time	Continuously adjustable (0.3 ~ 1 ms)
	Power Supply	DC 24±4 V
	Power Consumption	Cooling 24W / Stable 12W
	Operating Temperature	-40 °C ~ +60 °C
	Storage Temperature	-50 °C ~ +70 °C
	Dimensions	148 mm × 86 mm × 78 mm (Excluding Lens)
	Weight	≤803g (Excluding Lens)
