The elastic Stretch Sensor is a type of sensor designed to detect the strain or displacement of the human body or objects upon stretching. The sensor uses self-developed elastic nano conductive materials as the core sensitive element and textile materials as the packaging layer. It can be integrated onto the surfaces of elastic materials such as textile fabrics or leather, offering high elasticity, high sensitivity, and rapid response characteristics. Coupled with our company's high-precision wireless detection system and related algorithms, it can monitor real-time data such as strain, displacement, bending angle, and tensile force. These sensors are widely used in smart wearables, health monitoring, human-computer interaction, and structural safety assessment.

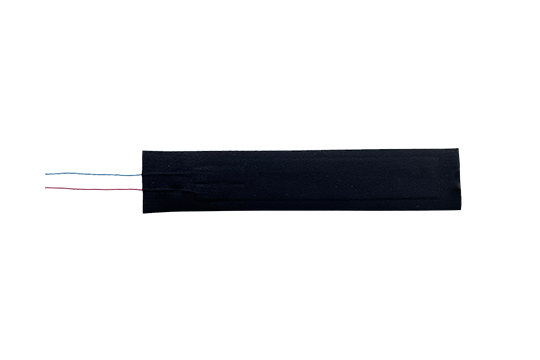

Elastic Stretch Sensor
Description
Features
1. Ultra-thin and ultra-elastic, comfortable to wear, washable
2. Fully flexible and stretchable, fatigue life up to 50%, 30W times
3. Low power consumption and excellent stability
4. Detection linearity up to 0.998
5. Sensors of different sizes and shapes can be customized
Application
Respiratory Monitoring Belt
Smart gloves
Motion capture suit
Human-computer interaction
Flexible three-axis force
Specifications
| Product Model | ESSA-01 | ESSB-01 |
| Dimensions | 150*30mm | 200*35mm |
| Thickness | 0.3mm | 1mm |
| 50% Yield Tensile Strength | ≥13N | ≥23N |
| Strain Range | 0-50% | 0-50% |
| Minimum Resolution | 0.05% | 0.05% |
| Linearity | 99.8% | 99.8% |
| Repeatability Error | ±6% | ±6% |
| Consistency Error | ±18% | ±18% |
| Durability | >1.5 million cycles (3% elongation) | >1 million cycles (10% elongation) |
| Response Time | ≤50ms | ≤50ms |
| Refresh Rate | 50Hz | 50Hz |
| Test Voltage | Typical 3.3V | Typical 3.3V |
| Operating Temperature | 10-45℃ | 10-45℃ |
| Washable | Machine wash 35 times | Machine wash 100 times |
