The PID sensor is a highly sensitive, wide-range, and broad-spectrum sensor capable of detecting thousands of volatile organic compounds (VOCs) and some inorganic vapors across various application fields. It offers a detection range up to 10,000 ppm and a detection limit as low as 1 ppb, featuring extremely fast response times and extremely high resolution. It can be used in various types of handheld portable and stationary field instruments, as well as in a wide range of analytical instruments.

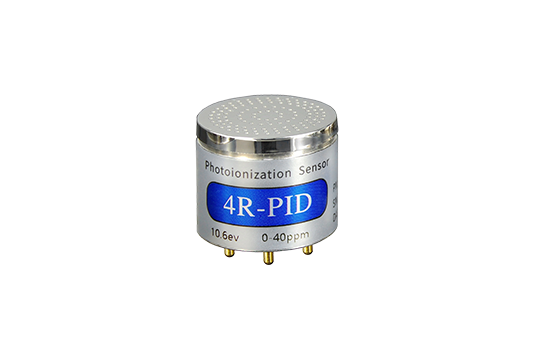

PID Sensor
Description
Features
High Sensitivity
High Resolution
Wide Temperature Range
Fast Response
Rich industry Experience
Auto Baseline Calibration
Application
Industry Health
Personal Safety
VOCs Detection
Emergency Response
Environment Monitoring
Soil Pollution and Treatment
Petroleum and Petrochemicals Safety
Specifications
| Detection Range | 3ppm | 10ppm | 20ppm | 100ppm | 1000ppm | 2000ppm | 10000ppm |
| Resolution | 500ppt | lppb | 5ppb | 25ppb | 250ppb | 500ppb | 2ppm |
| Sensitivity | >300mV/ppm | >100mV/ppm | >50mV/ppm | >10mV/ppm | >1mV/ppm | >0.5mV/ppm | >0.1mV/ppm |
| Target Gas | VOC,Energy≤10.6eV Volatile Gases | ||||||
| Working | 3.2~5.5V | ||||||
| Zero Voltage | U0>20 mV | ||||||
| Output Voltage | 0.02~2.5V(3.0 V max) | ||||||
| Response Time(T90) | ≤5 s | ||||||
| Operation Temperature | -40~60℃ | ||||||
| Accuracy | ≤±2%calibration point | ||||||
| Humidity | 0~99%RH(No Condensation) | ||||||
| Operating Pressure | 800~1200 mbar | ||||||
| Storage Tem | 0~25℃ | ||||||
| Warranty | 12 Months | ||||||
| Entity Parameter | Ui=6V, Pi=1.2W, Li=1.3A, Ci=2.91uF, Li=0 | ||||||
